Processor
|
Supports LGA1200 10th Gen Intel® Core™i3/i5/i7/i9/
Pentium/Celeron series processors |
|
Chipset
|
Intel®B360 Chipset
|
|
Memory Support
|
2* DDR4 UDIMM slot,2933MHz, up to 64GB
|
|
Storage
|
4* SATA3.0 port 6Gb/s
1* M.2_SSD M key support type 2242/2280 PCIe x4 SSD |
|
LAN
|
1* RTL8111H 10/100/1000Mbps Ethernet
support Wake On LAN |
|
Audio
|
1* Realtek ALC897 high fidelity audio controller
|
|
Slots
|
1* PCI Express X16 Gen 3.0 slot
1* PCI Express X1 Gen 3.0 slot 1*M.2_WIFI E key Support type 2230 bluetooth and wifi |
|

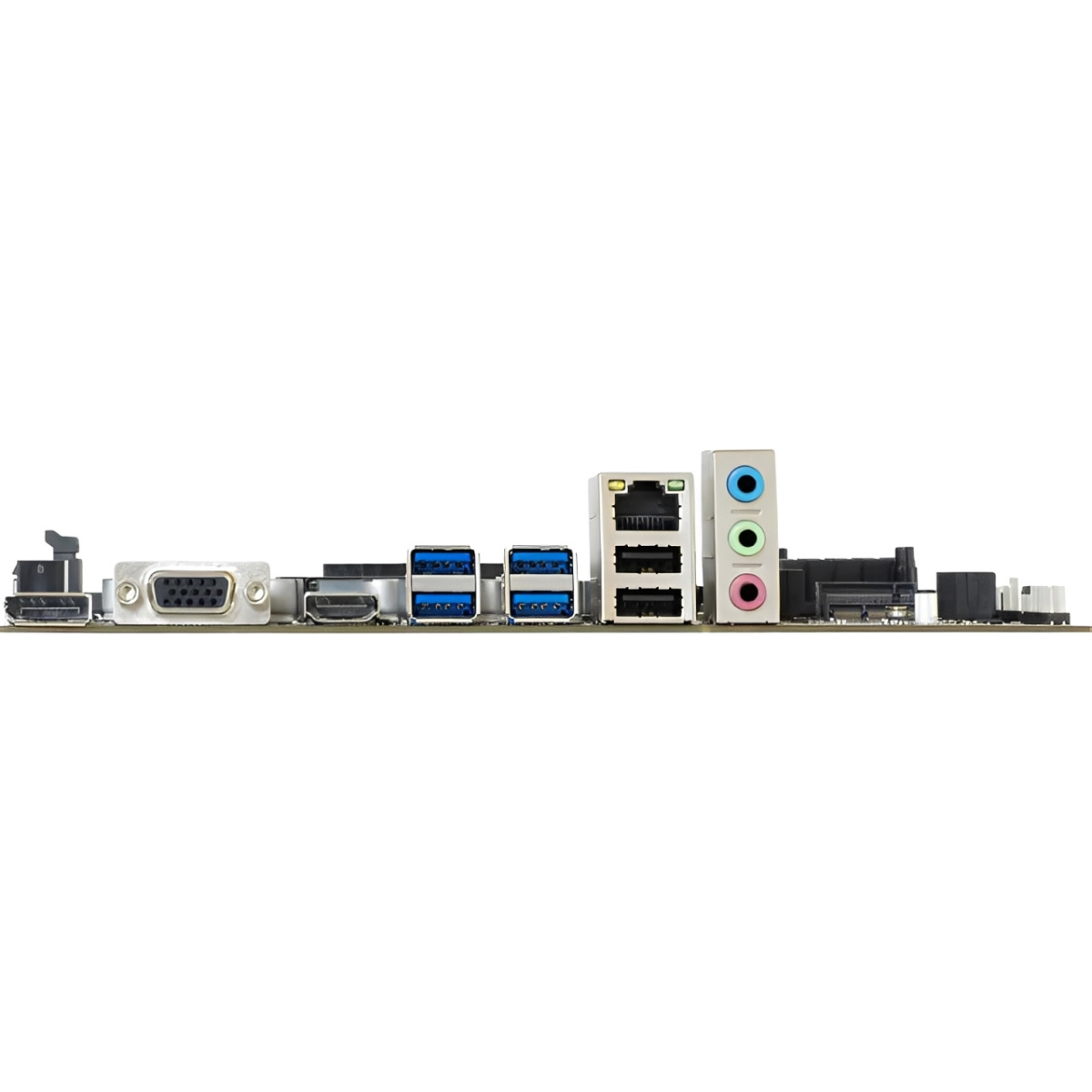

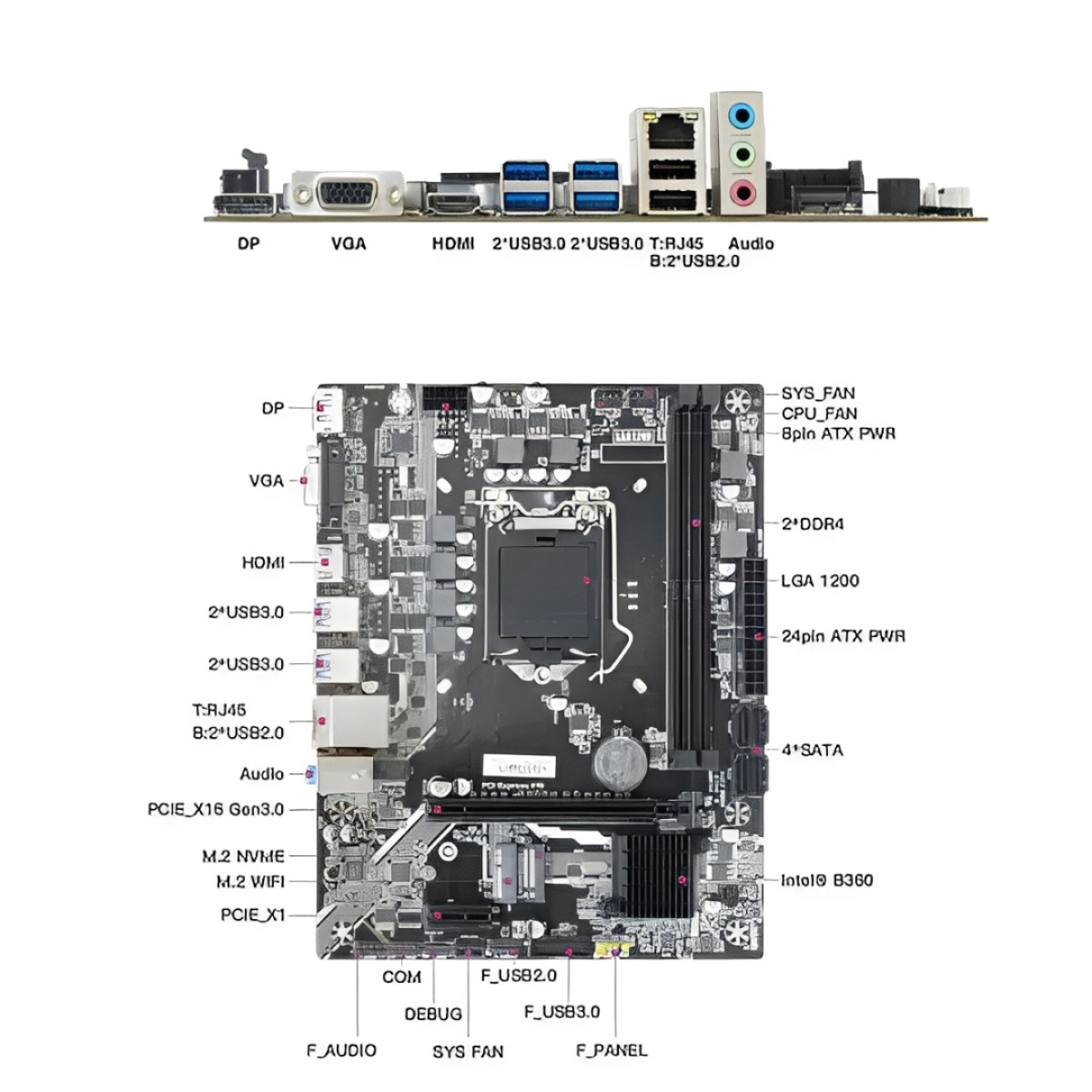

Back Panel
|
1*RJ45 port
2*USB2.0 port 1*HDMI port 1*VGA port
1*DP port 4*USB3.2 Gen1x1 port 1*Audio_jack (Line-in/Line-out/Mic-in) |
|
Onboard pinheader
|
1*ATX_24P power port
1*ATX_8P power port 1*CPU_FAN 4P connector 2*SYS_FAN 4P connector 1*F_PANEL connector 1*F_AUDIO connector 1*COM connector(optional) 1*TPM2.0 hardware module(optional) 1*F_USB 3.0 connector
∟2* USB 3.2Gen 1 port 1*F_USB 2.0 connector ∟2* USB2.0 port 1*CLR_CMOS connector 1*XMP connector 1*DEBUG connector |
|
Form factor
|
Micro-ATX 220mm x 175mm
|
-4%

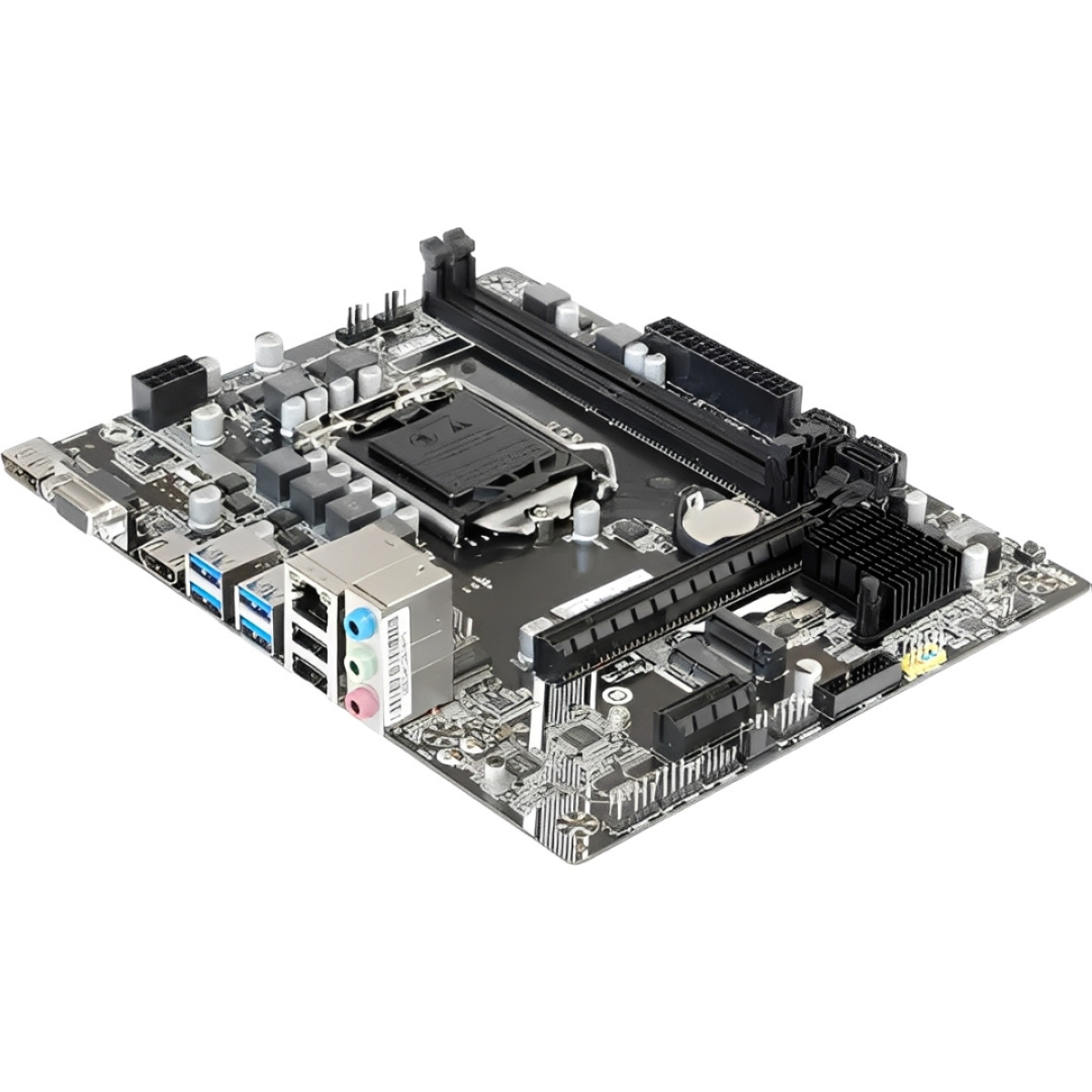

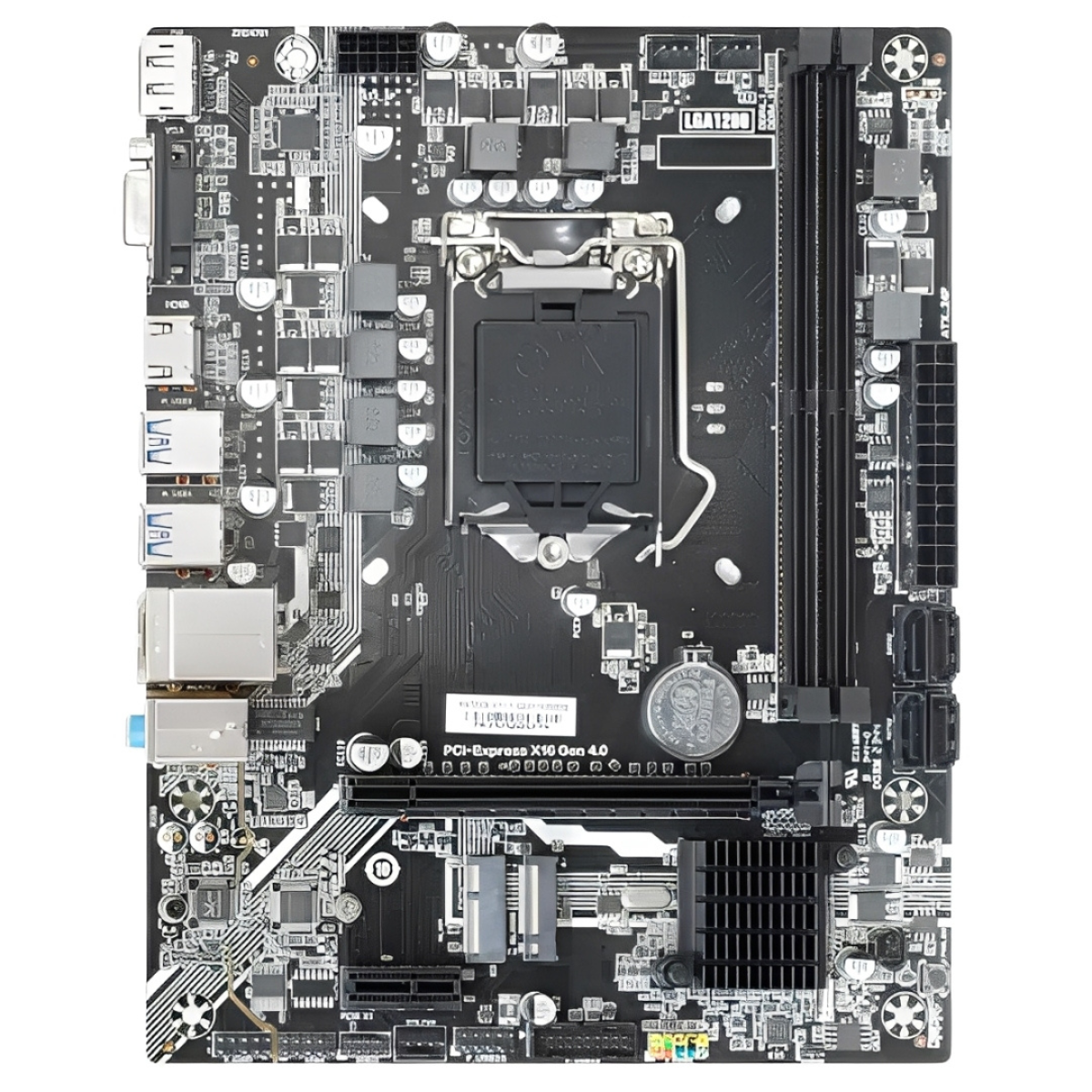

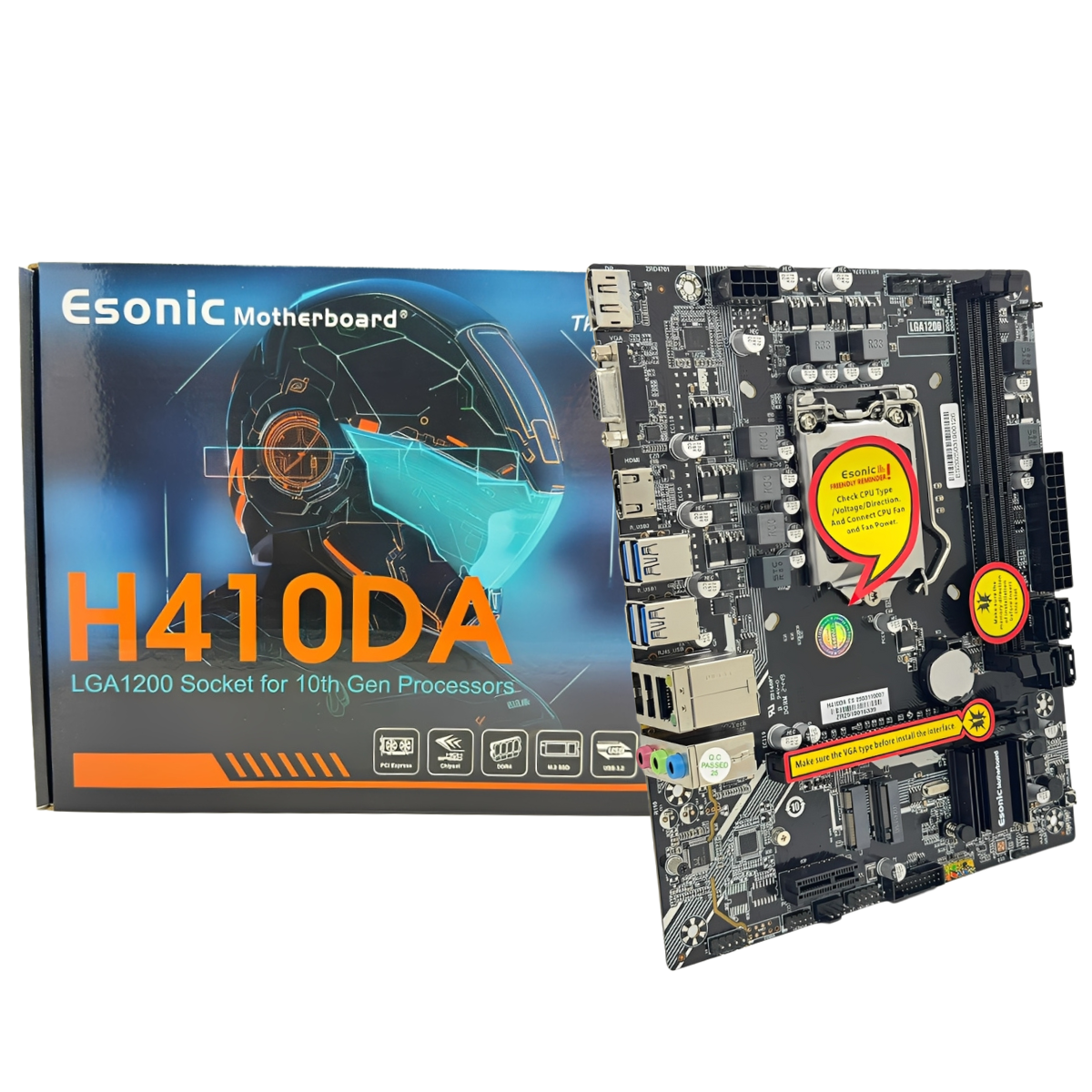

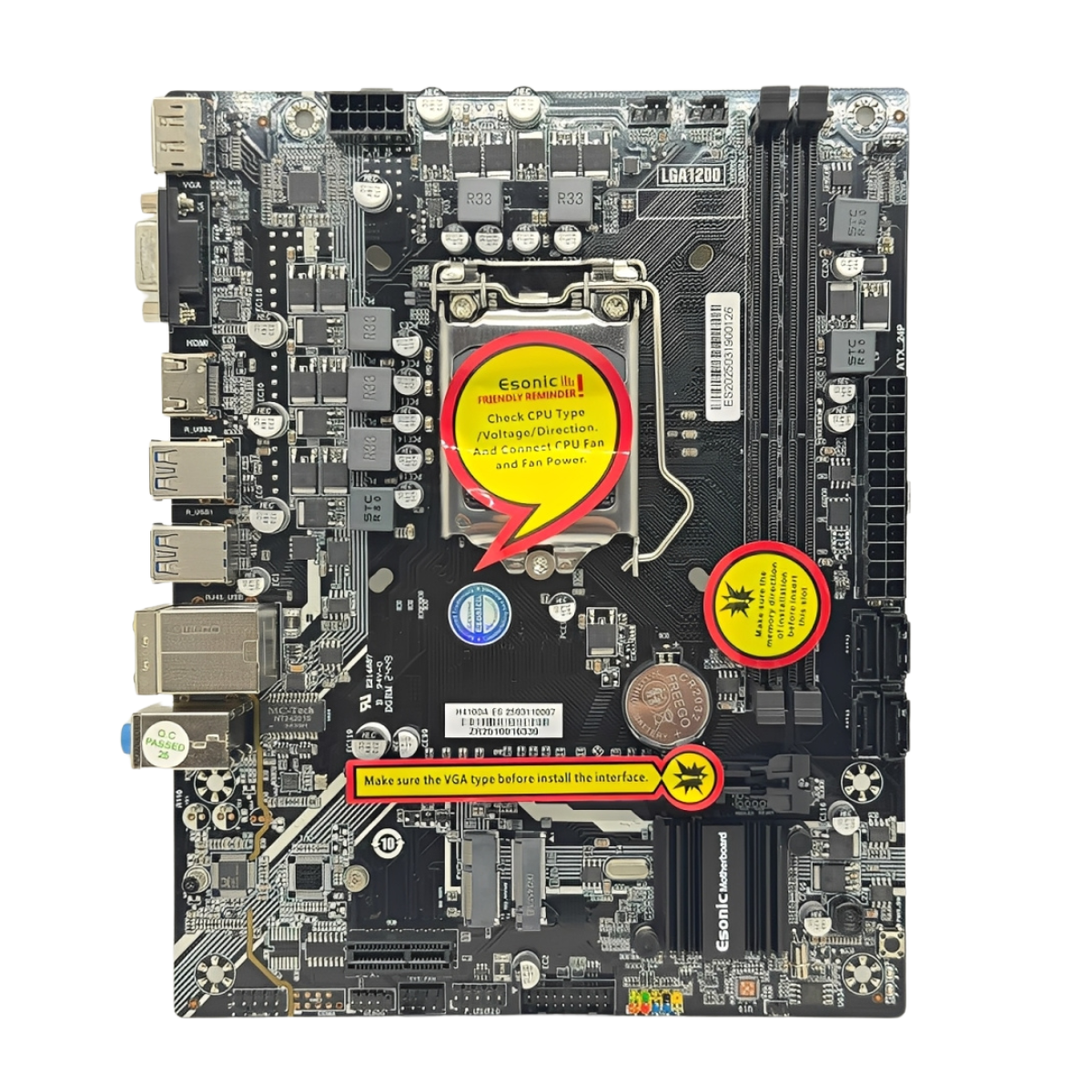

Esonic Motherboard H410 Suopport DDR4 10th Gen DP HDMI VGA
Regular Price :
Special Price Tk :
Original price was: ৳ 5,500.00.৳ 5,300.00Current price is: ৳ 5,300.00.
Quick Overview
-Intel B360 Chipset
-Supports LGA1200 10th Gen Intel® Core™ i3/i5/i7/
i9/Pentium/Celeron series processors
-2* DDR4 UDIMM slot,2933MHz, up to 64GB
-4* SATA3.0 port 6Gb/s
-1* M.2_SSD M key support type 2242/2280
PCIe x4 SSD
-6*USB3.2 Gen1x1 Ports
-4*USB2.0 Ports
-1*Audio port(Line-in/Line-out/Mic-in)
-1* RTL8111H 10/100/1000Mbps Ethernet
-Support Wake On LAN
Warrantty 1 years
